2.11 — Header files

Info Thread
By -
0

 Cpp Language: Cpp Programming - Apps on Google Play

Headers, and their purpose

As programs grow larger (and make use of more files), it becomes increasingly tedious to have to forward declare every function you want to use that is defined in a different file. Wouldn’t it be nice if you could put all your forward declarations in one place and then import them when you need them?

C++ code files (with a .cpp extension) are not the only files commonly seen in C++ programs. The other type of file is called a header file. Header files usually have a .h extension, but you will occasionally see them with a .hpp extension or no extension at all. The primary purpose of a header file is to propagate declarations to code files.

Key insight

Header files allow us to put declarations in one location and then import them wherever we need them. This can save a lot of typing in multi-file programs.

Using standard library header files

Consider the following program:

#include <iostream>

int main()
{
    std::cout << "Hello, world!";
    return 0;
}

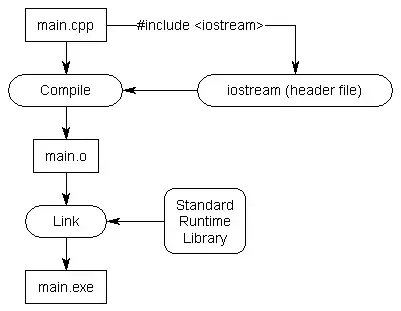

This program prints “Hello, world!” to the console using std::cout. However, this program never provided a definition or declaration for std::cout, so how does the compiler know what std::cout is?

The answer is that std::cout has been forward declared in the “iostream” header file. When we #include <iostream>, we’re requesting that the preprocessor copy all of the content (including forward declarations for std::cout) from the file named “iostream” into the file doing the #include.

Key insight

When you #include a file, the content of the included file is inserted at the point of inclusion. This provides a useful way to pull in declarations from another file.

Consider what would happen if the iostream header did not exist. Wherever you used std::cout, you would have to manually type or copy in all of the declarations related to std::cout into the top of each file that used std::cout! This would require a lot of knowledge about how std::cout was declared, and would be a ton of work. Even worse, if a function prototype was added or changed, we’d have to go manually update all of the forward declarations. It’s much easier to just #include <iostream>!

When it comes to functions and variables, it’s worth keeping in mind that header files typically only contain function and variable declarations, not function and variable definitions (otherwise a violation of the one definition rule could result). std::cout is forward declared in the iostream header, but defined as part of the C++ standard library, which is automatically linked into your program during the linker phase.

Best practice

Header files should generally not contain function and variable definitions, so as not to violate the one definition rule. An exception is made for symbolic constants (which we cover in lesson 4.13 -- Const variables and symbolic constants).

Writing your own header files

Now let’s go back to the example we were discussing in a previous lesson. When we left off, we had two files, add.cpp and main.cpp, that looked like this:

add.cpp:

int add(int x, int y)
{
    return x + y;
}

main.cpp:

#include <iostream>

int add(int x, int y); // forward declaration using function prototype

int main()
{
    std::cout << "The sum of 3 and 4 is " << add(3, 4) << '\n';
    return 0;
}

(If you’re recreating this example from scratch, don’t forget to add add.cpp to your project so it gets compiled in).

In this example, we used a forward declaration so that the compiler will know what identifier add is when compiling main.cpp. As previously mentioned, manually adding forward declarations for every function you want to use that lives in another file can get tedious quickly.

Let’s write a header file to relieve us of this burden. Writing a header file is surprisingly easy, as header files only consist of two parts:

  1. A header guard, which we’ll discuss in more detail in the next lesson (2.12 -- Header guards).
  2. The actual content of the header file, which should be the forward declarations for all of the identifiers we want other files to be able to see.

Adding a header file to a project works analogously to adding a source file (covered in lesson 2.8 -- Programs with multiple code files). If using an IDE, go through the same steps and choose “Header” instead of “Source” when asked. If using the command line, just create a new file in your favorite editor.

Best practice

Use a .h suffix when naming your header files.

Header files are often paired with code files, with the header file providing forward declarations for the corresponding code file. Since our header file will contain a forward declaration for functions defined in add.cpp, we’ll call our new header file add.h.

Best practice

If a header file is paired with a code file (e.g. add.h with add.cpp), they should both have the same base name (add).

Here’s our completed header file:

add.h:

// 1) We really should have a header guard here, but will omit it for simplicity (we'll cover header guards in the next lesson)

// 2) This is the content of the .h file, which is where the declarations go
int add(int x, int y); // function prototype for add.h -- don't forget the semicolon!

In order to use this header file in main.cpp, we have to #include it (using quotes, not angle brackets).

main.cpp:

#include "add.h" // Insert contents of add.h at this point.  Note use of double quotes here.
#include <iostream>

int main()
{
    std::cout << "The sum of 3 and 4 is " << add(3, 4) << '\n';
    return 0;
}

add.cpp:

#include "add.h" // Insert contents of add.h at this point.  Note use of double quotes here.

int add(int x, int y)
{
    return x + y;
}

When the preprocessor processes the #include "add.h" line, it copies the contents of add.h into the current file at that point. Because our add.h contains a forward declaration for function add, that forward declaration will be copied into main.cpp. The end result is a program that is functionally the same as the one where we manually added the forward declaration at the top of main.cpp.

Consequently, our program will compile and link correctly.

Source files should include their paired header

In C++, it is a best practice for code files to #include their paired header file (if one exists). In the example above, add.cpp includes add.h.

This allows the compiler to catch certain kinds of errors at compile time instead of link time. For example:

something.h:

int something(int); // return type of forward declaration is int

something.cpp:

#include "something.h"

void something(int) // error: wrong return type
{
}

Because something.cpp #includes something.h, the compiler will notice that function something() has a mismatched return type and give us a compile error. If something.cpp did not #include something.h, we’d have to wait until the linker discovered the discrepancy, which wastes time. For another example, see this comment.

Best practice

Source files should #include their paired header file (if one exists).

Troubleshooting

If you get a compiler error indicating that add.h isn’t found, make sure the file is really named add.h. Depending on how you created and named it, it’s possible the file could have been named something like add (no extension) or add.h.txt or add.hpp. Also make sure it’s sitting in the same directory as the rest of your code files.

If you get a linker error about function add not being defined, make sure you’ve added add.cpp in your project so the definition for function add can be linked into the program.

Angled brackets vs double quotes

You’re probably curious why we use angled brackets for iostream, and double quotes for add.h. It’s possible that a header file with the same filename might exist in multiple directories. Our use of angled brackets vs double quotes helps give the preprocessor a clue as to where it should look for header files.

When we use angled brackets, we’re telling the preprocessor that this is a header file we didn’t write ourselves. The preprocessor will search for the header only in the directories specified by the include directories. The include directories are configured as part of your project/IDE settings/compiler settings, and typically default to the directories containing the header files that come with your compiler and/or OS. The preprocessor will not search for the header file in your project’s source code directory.

When we use double-quotes, we’re telling the preprocessor that this is a header file that we wrote. The preprocessor will first search for the header file in the current directory. If it can’t find a matching header there, it will then search the include directories.

Rule

Use double quotes to include header files that you’ve written or are expected to be found in the current directory. Use angled brackets to include headers that come with your compiler, OS, or third-party libraries you’ve installed elsewhere on your system.

Why doesn’t iostream have a .h extension?

Another commonly asked question is “why doesn’t iostream (or any of the other standard library header files) have a .h extension?”. The answer is that iostream.h is a different header file than iostream! To explain requires a short history lesson.

When C++ was first created, all of the files in the standard library ended in a .h suffix. Life was consistent, and it was good. The original version of cout and cin were declared in iostream.h. When the language was standardized by the ANSI committee, they decided to move all of the names used in the standard library into the std namespace to help avoid naming conflicts with user-defined identifiers. However, this presented a problem: if they moved all the names into the std namespace, none of the old programs (that included iostream.h) would work anymore!

To work around this issue, a new set of header files was introduced that lack the .h extension. These new header files define all names inside the std namespace. This way, older programs that include #include <iostream.h> do not need to be rewritten, and newer programs can #include <iostream>.

Key insight

The header files with the .h extension define their names in the global namespace, and may optionally define them in the std namespace as well.

The header files without the .h extension will define their names in the std namespace, and may optionally define them in the global namespace as well.

In addition, many of the libraries inherited from C that are still useful in C++ were given a c prefix (e.g. stdlib.h became cstdlib). The functionality from these libraries was also moved into the std namespace to help avoid naming collisions.

Best practice

When including a header file from the standard library, use the version without the .h extension if it exists. User-defined headers should still use a .h extension.

Including header files from other directories

Another common question involves how to include header files from other directories.

One (bad) way to do this is to include a relative path to the header file you want to include as part of the #include line. For example:

#include "headers/myHeader.h"
#include "../moreHeaders/myOtherHeader.h"

While this will compile (assuming the files exist in those relative directories), the downside of this approach is that it requires you to reflect your directory structure in your code. If you ever update your directory structure, your code won’t work anymore.

A better method is to tell your compiler or IDE that you have a bunch of header files in some other location, so that it will look there when it can’t find them in the current directory. This can generally be done by setting an include path or search directory in your IDE project settings.

For Visual Studio users

Right click on your project in the Solution Explorer, and choose Properties, then the VC++ Directories tab. From here, you will see a line called Include Directories. Add the directories you’d like the compiler to search for additional headers there.

For Code::Blocks users

In Code::Blocks, go to the Project menu and select Build Options, then the Search directories tab. Add the directories you’d like the compiler to search for additional headers there.

For GCC/G++ users

Using g++, you can use the -I option to specify an alternate include directory:
g++ -o main -I/source/includes main.cpp

For VS Code users

In your tasks.json configuration file, add a new line in the “Args” section:
"-I/source/includes",

The nice thing about this approach is that if you ever change your directory structure, you only have to change a single compiler or IDE setting instead of every code file.

Headers may include other headers

It’s common that a header file will need a declaration or definition that lives in a different header file. Because of this, header files will often #include other header files.

When your code file #includes the first header file, you’ll also get any other header files that the first header file includes (and any header files those include, and so on). These additional header files are sometimes called transitive includes, as they’re included implicitly rather than explicitly.

The content of these transitive includes are available for use in your code file. However, you should not rely on the content of headers that are included transitively. The implementation of header files may change over time, or be different across different systems. If that happens, your code may only compile on certain systems, or may compile now but not in the future. This is easily avoided by explicitly including all of the header files the content of your code file requires.

Best practice

Each file should explicitly #include all of the header files it needs to compile. Do not rely on headers included transitively from other headers.

Unfortunately, there is no easy way to detect when your code file is accidentally relying on content of a header file that has been included by another header file.

Q: I didn’t include <someheader> and my program worked anyway! Why?

This is one of the most commonly asked questions on this site. The answer is: it’s likely working, because you included some other header (e.g. <iostream>), which itself included <someheader>. Although your program will compile, per the best practice above, you should not rely on this. What compiles for you might not compile on a friend’s machine.

The #include order of header files

If your header files are written properly and #include everything they need, the order of inclusion shouldn’t matter.

Now consider the following scenario: let’s say header A needs declarations from header B, but forgets to include it. In our code file, if we include header B before header A, our code will still compile! This is because the compiler will compile all the declarations from B before it compiles the code from A that depends on those declarations.

However, if we include header A first, then the compiler will complain because the code from A will be compiled before the compiler has seen the declarations from B. This is actually preferable, because the error has been surfaced, and we can then fix it.

Best practice

To maximize the chance that missing includes will be flagged by compiler, order your #includes as follows:

  1. The paired header file
  2. Other headers from your project
  3. 3rd party library headers
  4. Standard library headers

The headers for each grouping should be sorted alphabetically.

That way, if one of your user-defined headers is missing an #include for a 3rd party library or standard library header, it’s more likely to cause a compile error so you can fix it.

Header file best practices

Here are a few more recommendations for creating and using header files.

  • Always include header guards (we’ll cover these next lesson).
  • Do not define variables and functions in header files (global constants are an exception -- we’ll cover these later)
  • Give a header file the same name as the source file it’s associated with (e.g. grades.h is paired with grades.cpp).
  • Each header file should have a specific job, and be as independent as possible. For example, you might put all your declarations related to functionality A in A.h and all your declarations related to functionality B in B.h. That way if you only care about A later, you can just include A.h and not get any of the stuff related to B.
  • Be mindful of which headers you need to explicitly include for the functionality that you are using in your code files
  • Every header you write should compile on its own (it should #include every dependency it needs)
  • Only #include what you need (don’t include everything just because you can).
  • Do not #include .cpp files.
